ARI-ZETRIX zero leakage triple offset butterfly valve

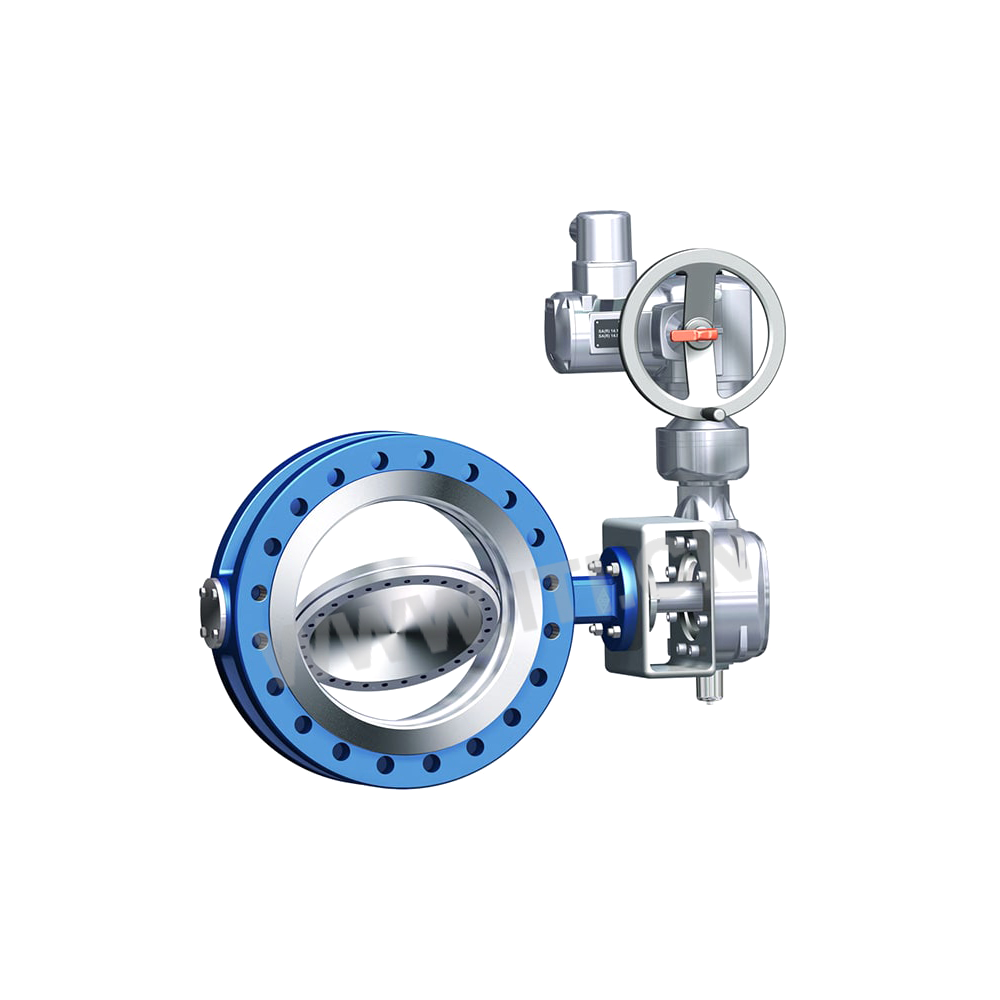

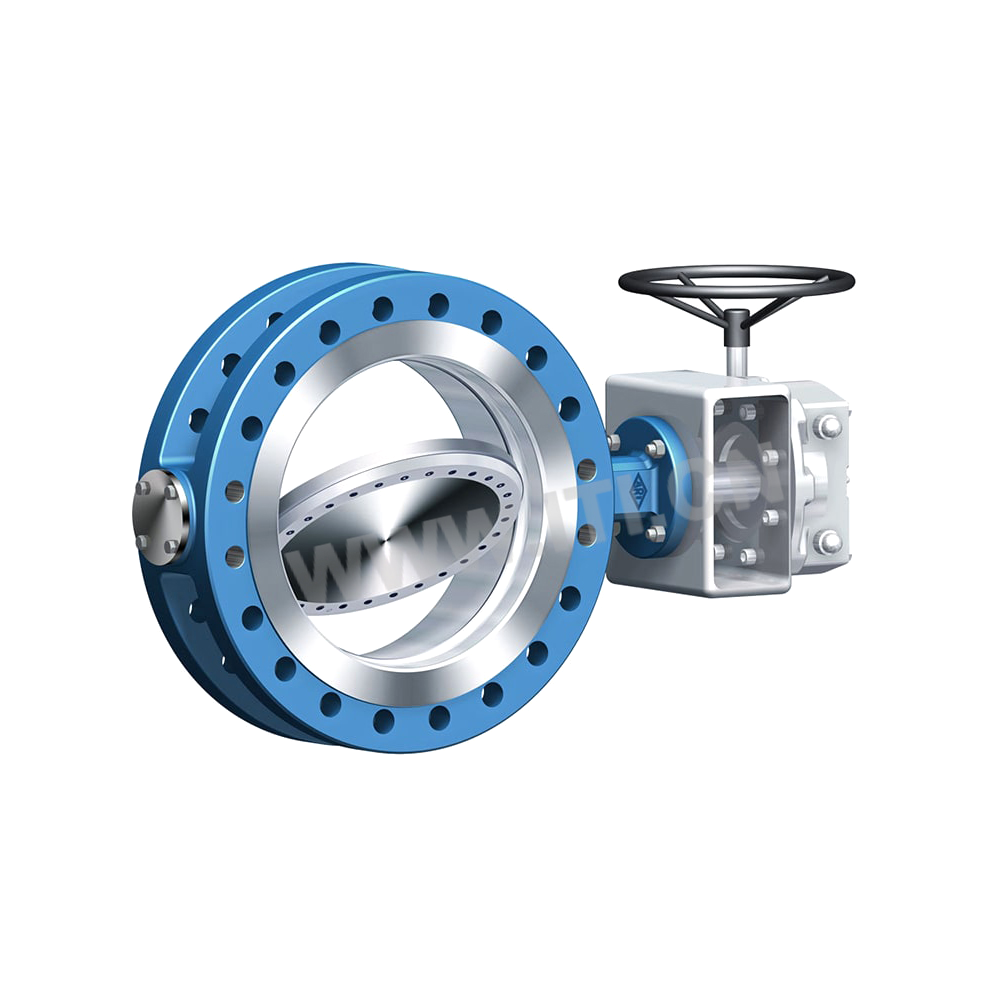

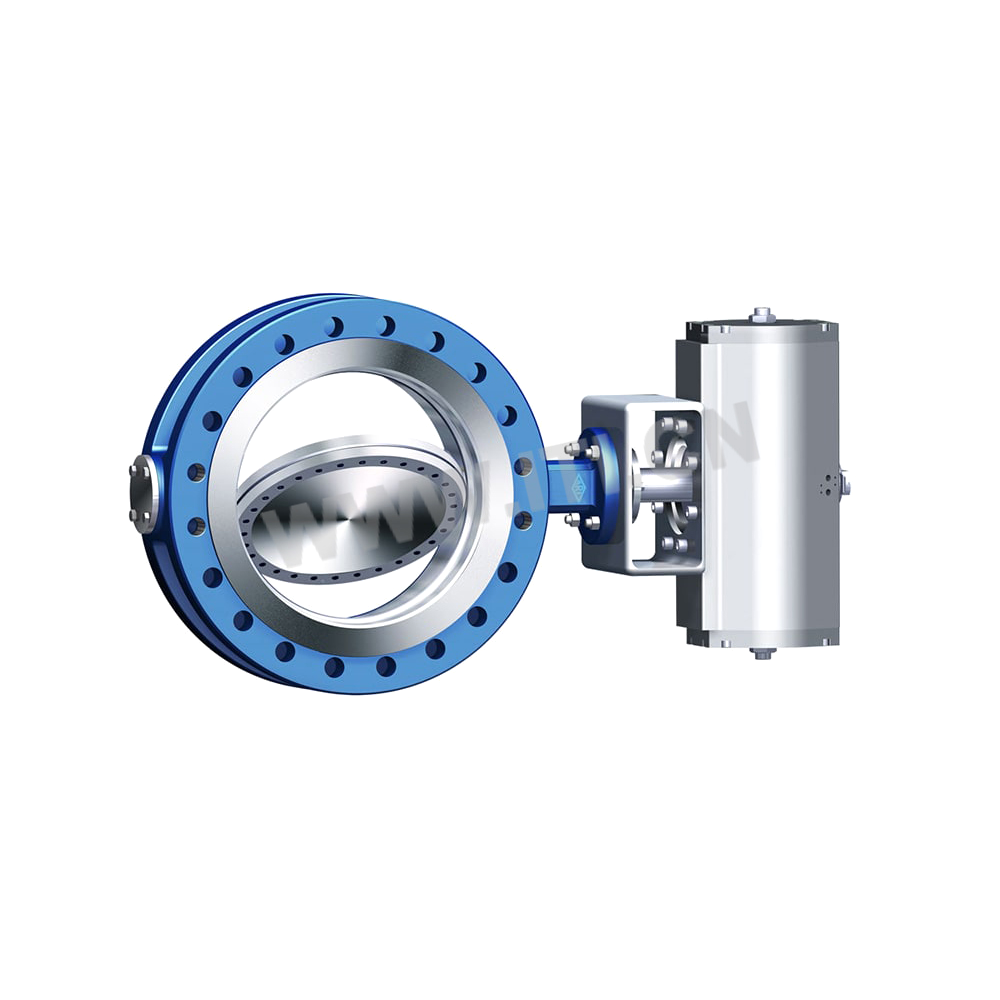

ARI-ZETRIX Triple offset butterfly valve is imported from Germany, completely sealed with zero leakage, it can be used safely even in strict industrial field. Available with manual, hydraulic, electric (-e) or pneumatic (-dp) actuators.
ARI-ZETRIX Triple offset butterfly valve is imported from Germany, completely sealed with zero leakage, it can be used safely even in strict industrial field. Available with manual, hydraulic, electric (-e) or pneumatic (-dp) actuators.
ARI-ZETRIX Triple offset butterfly valve has wide applicability, high safety and long service life.
- Double flange and threaded flange design
- Cast steel / stainless steel body, one-piece
- Triple offset construction: Rotary movement (90°) without wear or friction
- Metallic sealing
- Stellited seat (Stellite® 21)
- Continous stem, hardened bearings with graphit protector ring
- Blow-out protected stem (optional: acc. to API 609)
- Fire safe acc. to ISO 10479 / API 607
- ATEX
- SIL
- Packing acc. to EN ISO 15848-1/ TA-Luft (optional)
Nominal diameter: DN150-600
Nominal pressure: PN10-40 /Class 150/Class300
Valve material: - 1.061+N,- SA216WCB,- 1.4408,-SA351CF8M
Fluid medium: Liquid, Gas, Steam

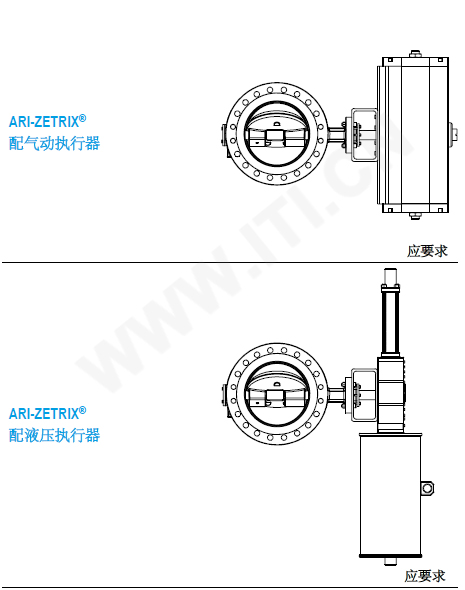

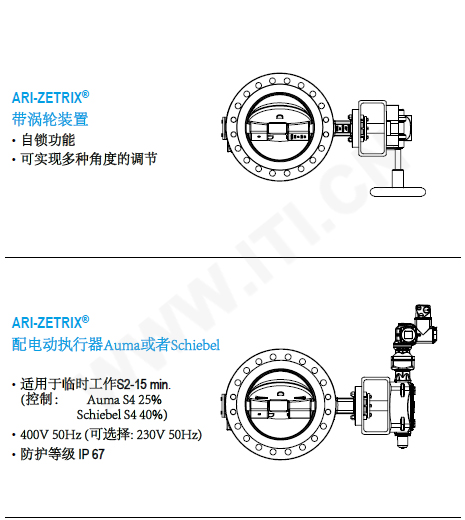

Actuator selection:Manual turbo, Electric, Pneumatic, Hydraulic rotation
- Fully sealed: General, Durable, Safe
•Laminated stack made of stainless steel and graphite lends additional elasticity to the sealing ring.
•Triple offset design guatantees a frictionless swivel movement of the sealing ring into the seat.
•The ZETRIX seals according to the area seating principle; the required contact pressure is applied via the actuator.
•Maximum closing force with minimum effort because of optimised contact angles. - Modern development methods, tested in our own experimental lab
•Finite element method
•State-of-the-art flow simulations
•Rigorous tests(here: firesafe)
•Characteristic measurements
•Contact angle calculation - High-precision manufacturing
•The valve bodies are manufactured on fully automatic, CNC controlled machining cetres.
•Fully automatic welding robot with an integrated measuring system.
•The three-dimensional measuring system allows the compatison with 3D data.
•Computer aided leak according to DIN EN 12266
